AIM SERIES
BACKLIT FLAT PANELS
High-performance Backlit Flat Panels available in a Sensor-Ready design for a seamless, integrated look.
BOOST
COMFORT &
PRODUCTIVITY
Bring superior light quality to any space with backlit LED
technology, creating a safe, comfortable, and user-friendly
environment optimized for exceptional visual comfort.
BOOST
COMFORT &
PRODUCTIVITY
Bring superior light quality to any space with backlit LED
technology, creating a safe, comfortable, and user-friendly
environment optimized for exceptional visual comfort.
KEY FEATURES
Ultra-slim backlit design enhances aesthetics while providing even light distribution
Energy-efficient LED technology, reducing power consumption by up to 50% compared to traditional lighting
Available in 1’ x 4’, 2’ x 2’, and 2’ x 4’ to fit various ceiling grid configurations
Flicker-free, glare-free illumination for enhanced visual comfort
Multi Power and Multi CCT to cover a wide range of needs with just one SKU
Integrated 0-10V dimming for customizable brightness
“MS” Sensor-Ready models available with choice of optional integrated PIR sensor (Standalone/Fixture Mounted or RENO Smart NLC System Bluetooth)
Suitable for Damp Locations
Multiple mounting options: Suspension, Surface Mount, or Recess Mount

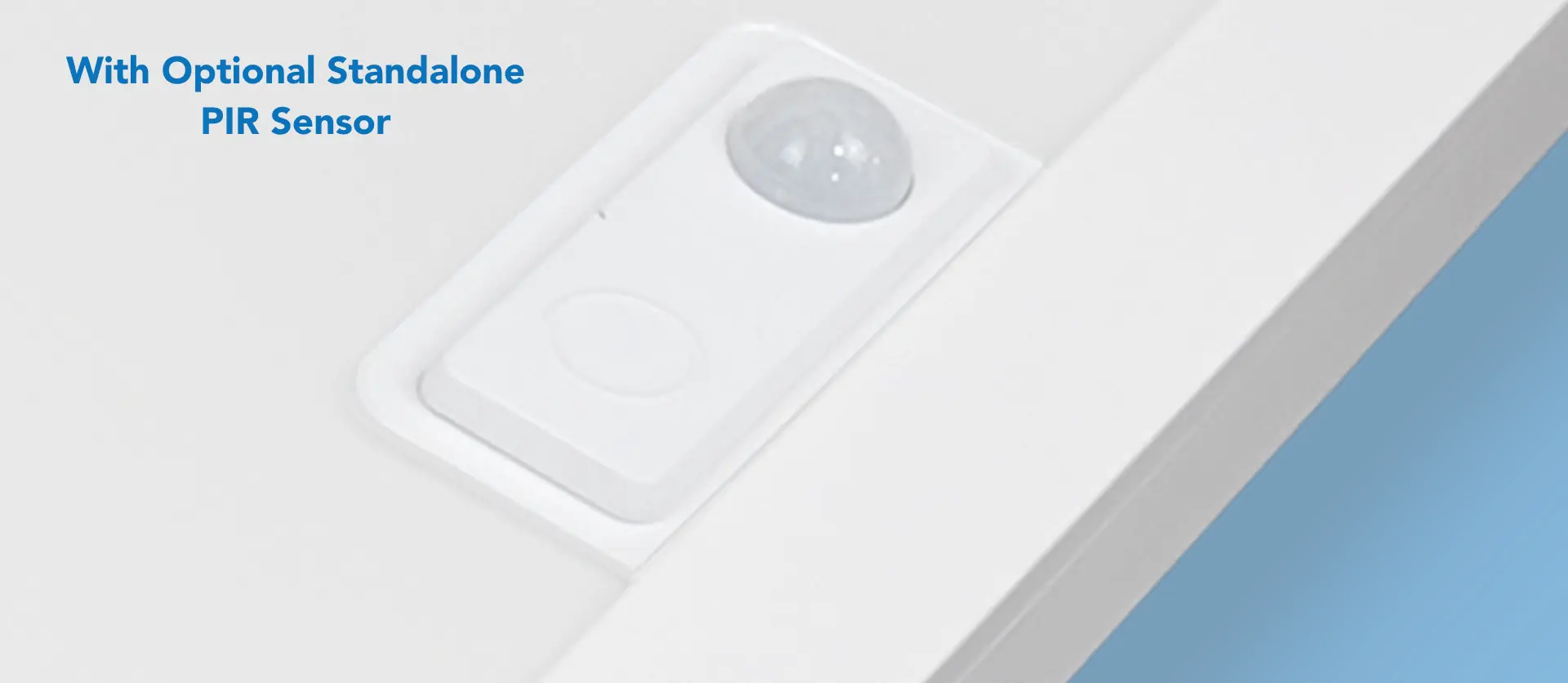

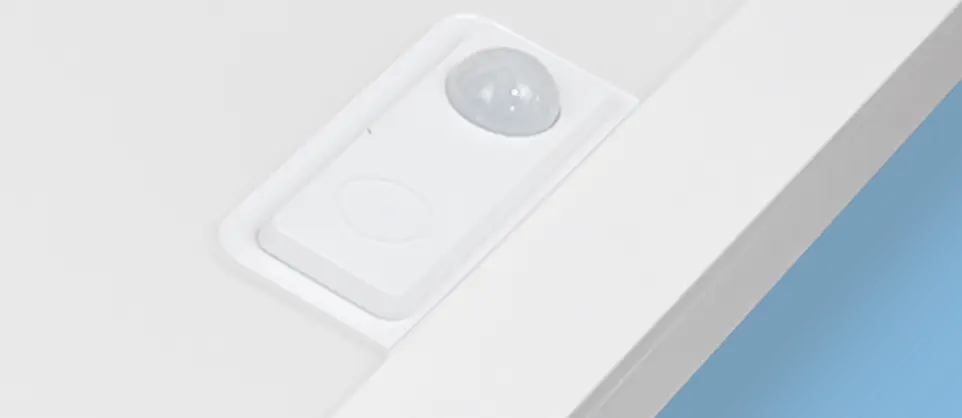

With Optional Standalone
PIR Sensor

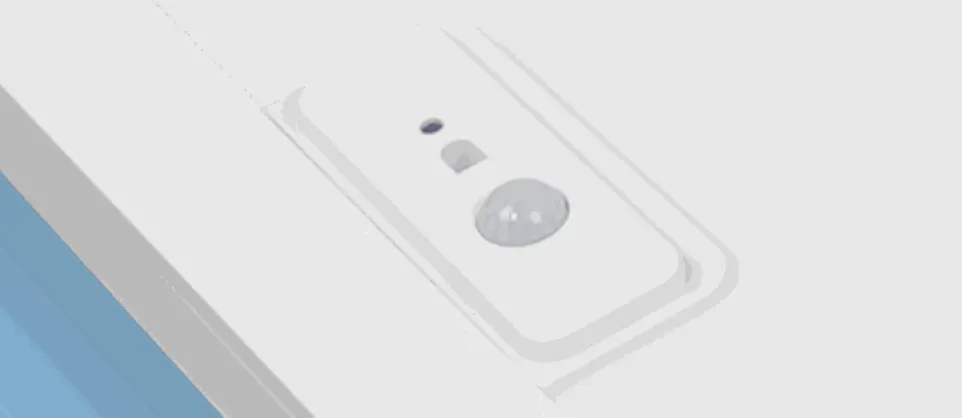

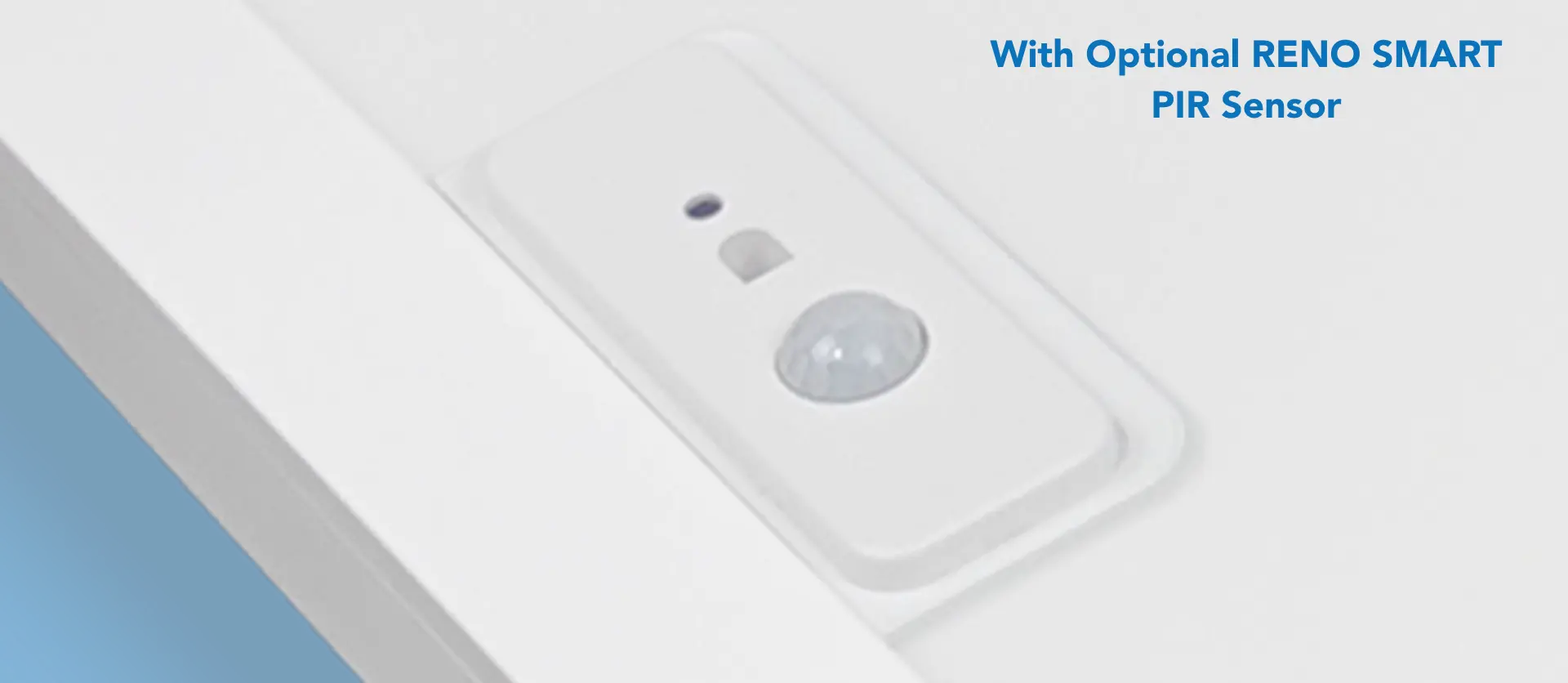

With Optional RENO Smart
PIR Sensor
KEY FEATURES
Ultra-slim backlit design enhances aesthetics while providing even light distribution
Energy-efficient LED technology, reducing power consumption by up to 50% compared to traditional lighting
Available in 1’ x 4’, 2’ x 2’, and 2’ x 4’ to fit various ceiling grid configurations
Flicker-free, glare-free illumination for enhanced visual comfort
Multi Power and Multi CCT to cover a wide range of needs with just one SKU
Integrated 0-10V dimming for customizable brightness
“MS” Sensor-Ready models available with choice of optional integrated PIR sensor (Standalone/Fixture Mounted or RENO Smart NLC System Bluetooth)
Suitable for Damp Locations
Multiple mounting options: Suspension, Surface Mount, or Recess Mount
UNIFORM LIGHT DISTRIBUTION
THAT NEVER YELLOWS

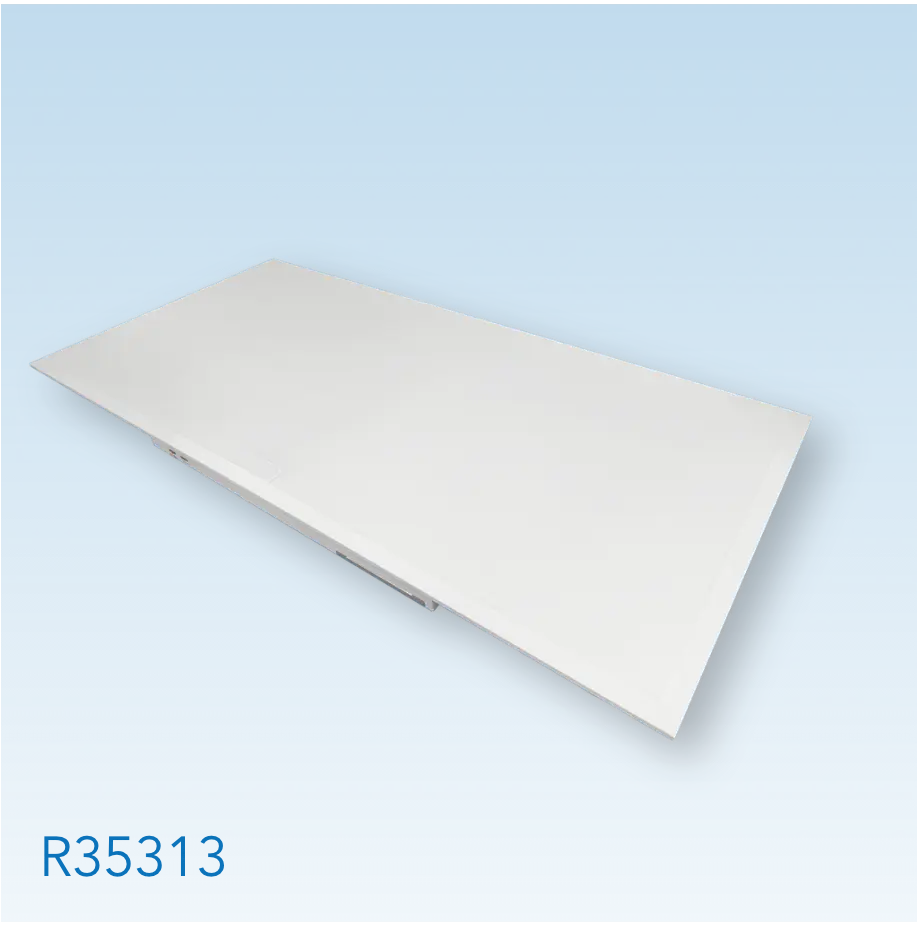

The AIM Series Backlit Flat Panel combines sleek design with high efficiency to deliver exceptional illumination and lasting performance, free from the yellowing often seen in edge-lit alternatives.
A Sensor-Ready option allows for seamless integration, enabling easy connection of a PIR sensor to minimize energy waste by ensuring lights are only illuminated when needed. Engineered for versatility, it enhances lighting in offices, classrooms, healthcare facilities, and retail showrooms, ensuring greater comfort, safety, and reduced maintenance and energy costs.
UNIFORM LIGHT DISTRIBUTION
THAT NEVER YELLOWS
The AIM Series Backlit Flat Panel combines sleek design with high efficiency to deliver exceptional illumination and lasting performance, free from the yellowing often seen in edge-lit alternatives.
A Sensor-Ready option allows for seamless integration, enabling easy connection of a PIR sensor to minimize energy waste by ensuring lights are only illuminated when needed.
Engineered for versatility, it enhances lighting in offices, classrooms, healthcare facilities, and retail showrooms, ensuring greater comfort, safety, and reduced maintenance and energy costs.

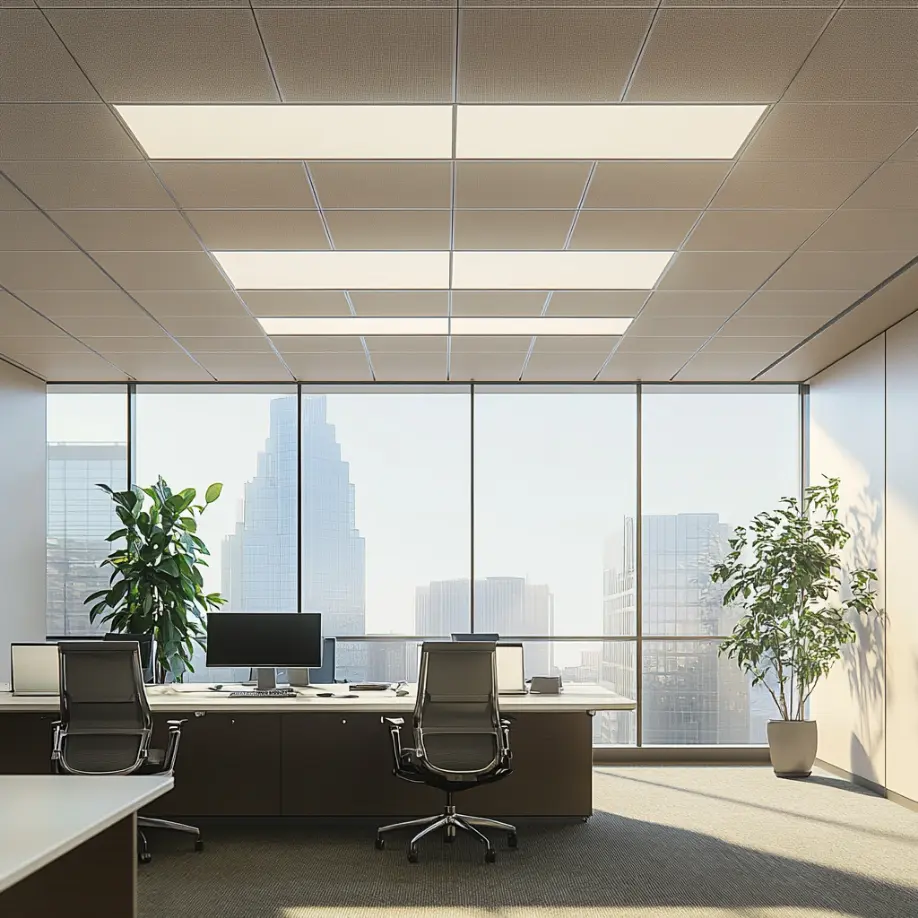

OFFICE & WORKSPACES
Ideal for workspaces, meeting rooms, and lobbies, providing uniform, flicker-free lighting that enhances productivity and visual comfort.
SCHOOLS & UNIVERSITIES
Perfect for classrooms, lecture halls, and libraries, offering glare-free illumination that supports focused learning.

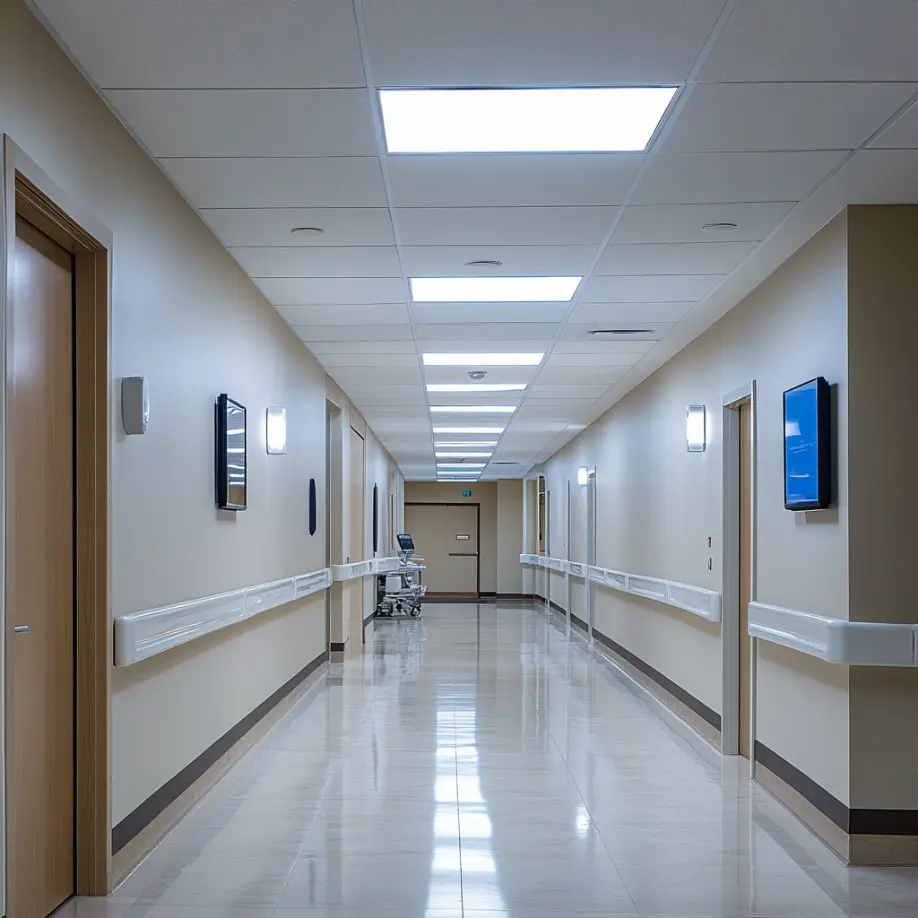

HEALTHCARE FACILITIES
Suited for hospitals, clinics, and laboratories, delivering bright, clean light essential for precision and patient care.
RETAIL &
COMMERCE SPACES
Excellent for stores, showrooms, and hospitality venues, creating vibrant, well-lit environments that enhance customer experiences.
PREMIUM BACKLIT FLAT PANELS
Order #
Wattage
CCT
Lumens
Bluetooth PIR Sensor *
CRI
R35104
R35105
R35106
R35311
R35312
R35313
Model Number
RENO-14BLPL-UNV/347-MWMCCT-HL
RENO-22BLPL-UNV/347-MWMCCT-HL
RENO-24BLPL-UNV/347-MWMCCT-HL
RENO-14BLPL-UNV/347-MWMCCT-HL-MS
RENO-22BLPL-UNV/347-MWMCCT-HL-MS
RENO-24BLPL-UNV/347-MWMCCT-HL-MS
Size

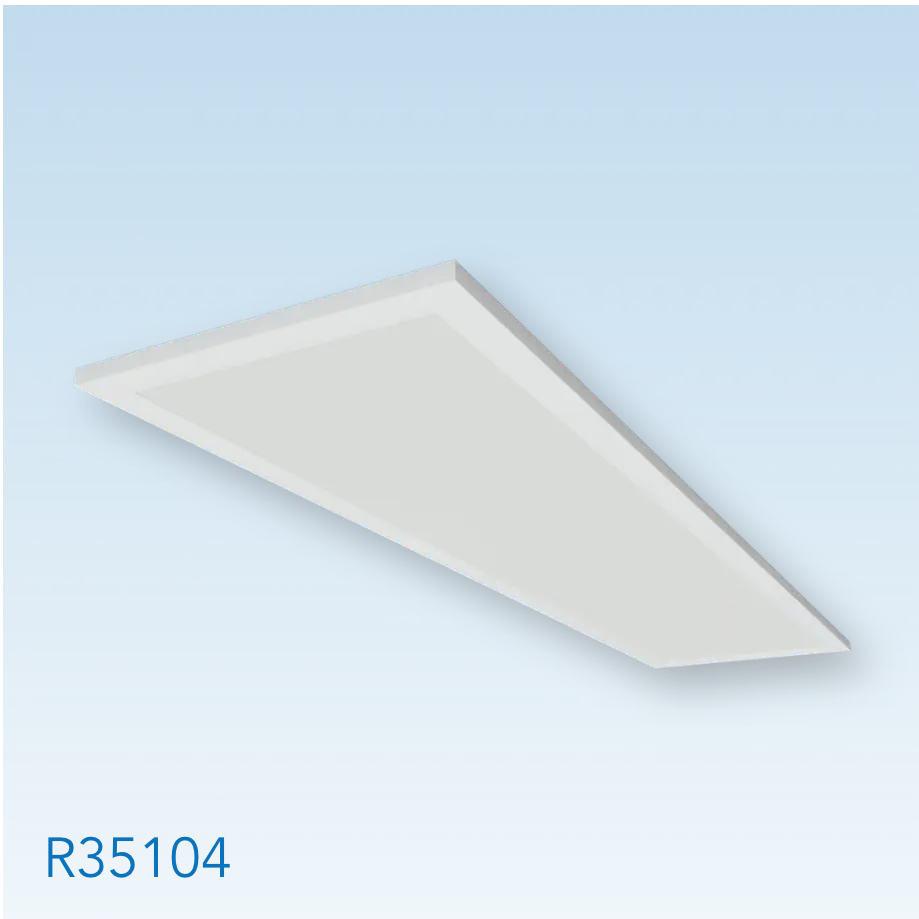

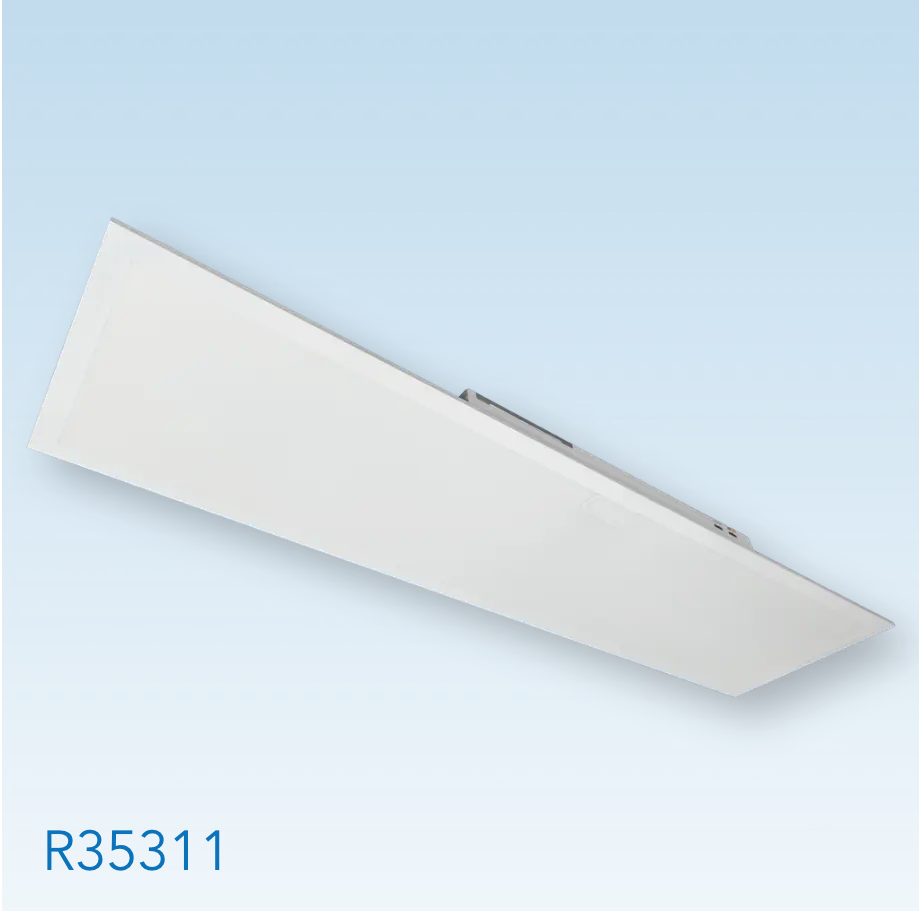

1' x 4'

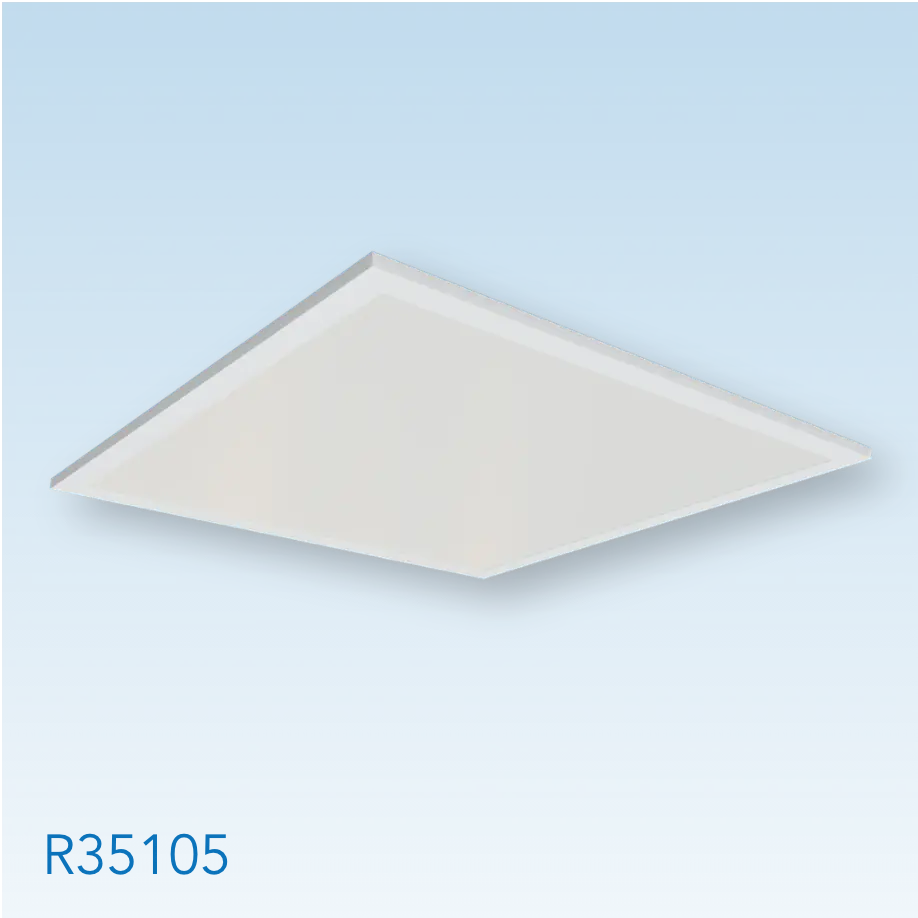

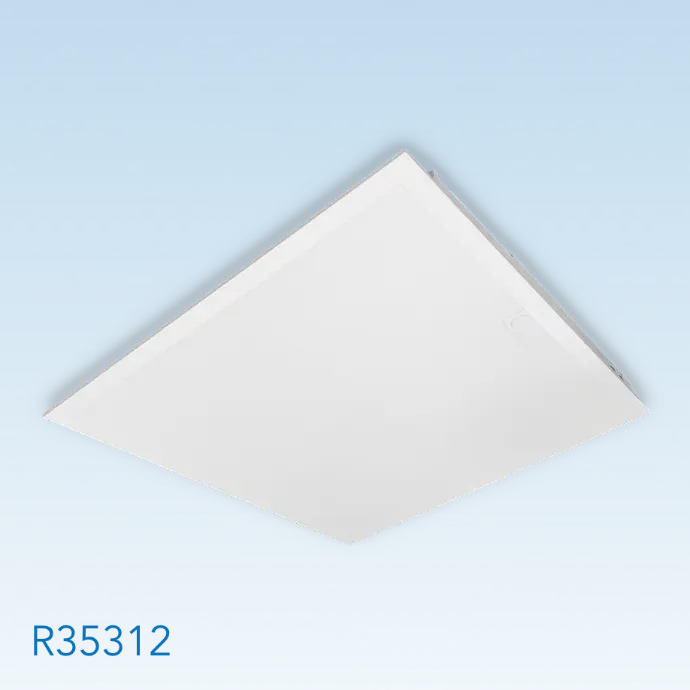

2' x 2'
2' x 4'
1' x 4'
2' x 2'
2' x 4'
20/25/30/40W
20/25/30/40W
30/40/50/60W
20/25/30/40W
20/25/30/40W
30/40/50/60W
35/40/5000K
35/40/5000K
35/40/5000K
35/40/5000K
35/40/5000K
35/40/5000K
2,600 / 3,250 / 3,900 / 5,200 lm
2,600 / 3,250 / 3,900 / 5,200 lm
3,990 / 5,320 / 6,650 / 8,004 lm
2,600 / 3,250 / 3,900 / 5,200 lm
2,600 / 3,250 / 3,900 / 5,200 lm
3,900 / 5,320 / 6,650 / 8,004 lm
>80
>80
>80
>80
>80
>80
N/A
N/A
N/A
R74001 **
R74001 **
R74001 **
N/A
N/A
N/A
R75003 ***
R75003 ***
R75003 ***
Standalone PIR Sensor *
* (Sold Separately)
** Order Remote Control R73002 or R73005, one Remote is required per site for programming
*** The RENO Smart App is available for download on Google Play & the App Store
ACCESSORIES
Order #
Model Number
Size
R39201
R39202
R39203
R39211
R39212
R39213
R39204
R83001
R74001
R75003
R73002
R73005
RENO-SMK14
RENO-SMK22
RENO-SMK24
RENO-RFK14
RENO-RFK22
RENO-RFK24
RENO-RP-ROPE
RENO-EM-H15
RENO-SENSOR-PIR-H
RENO-RS-BPRN-12V
RENO-REMOTE-H
RENO-REMOTE-H-ECO

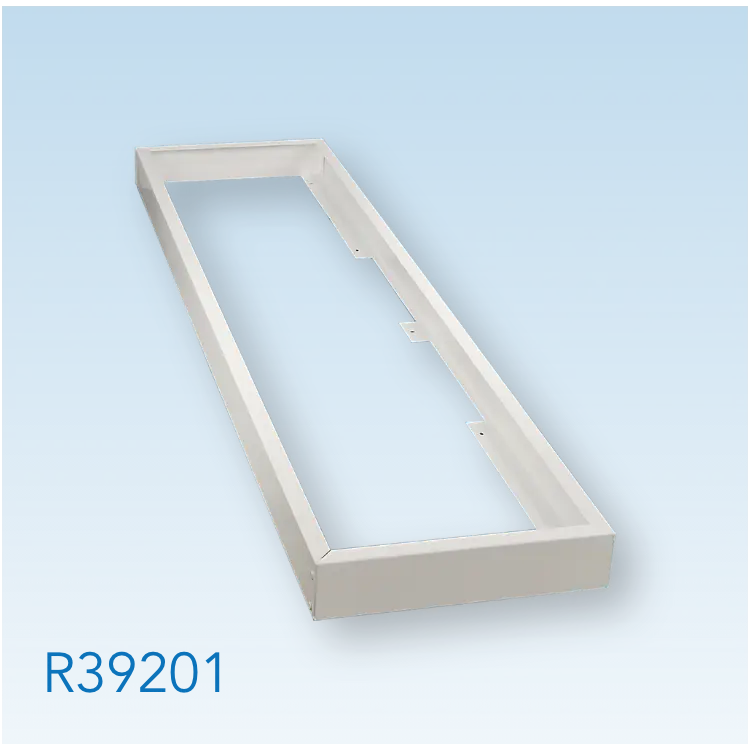

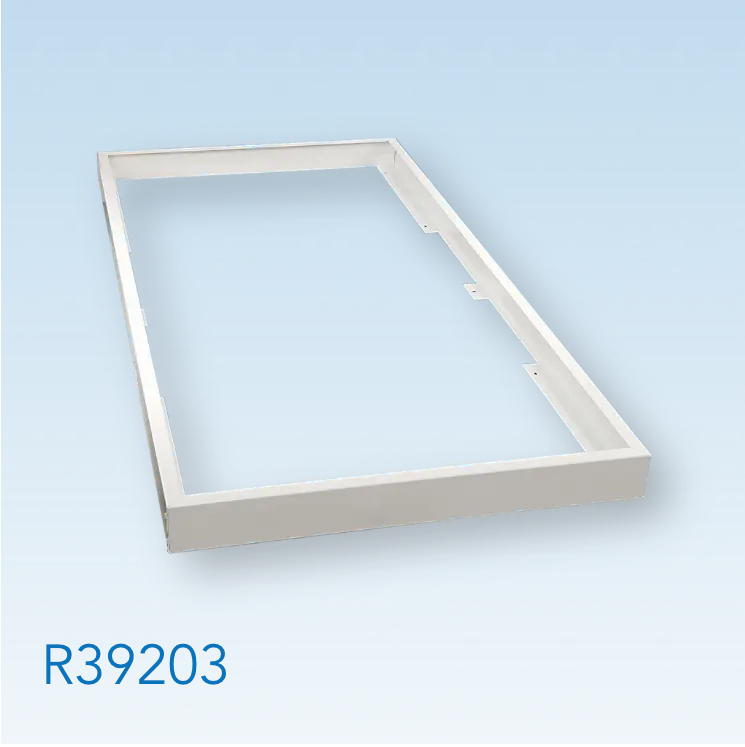

1’ x 4’ Surface Mounted Kits

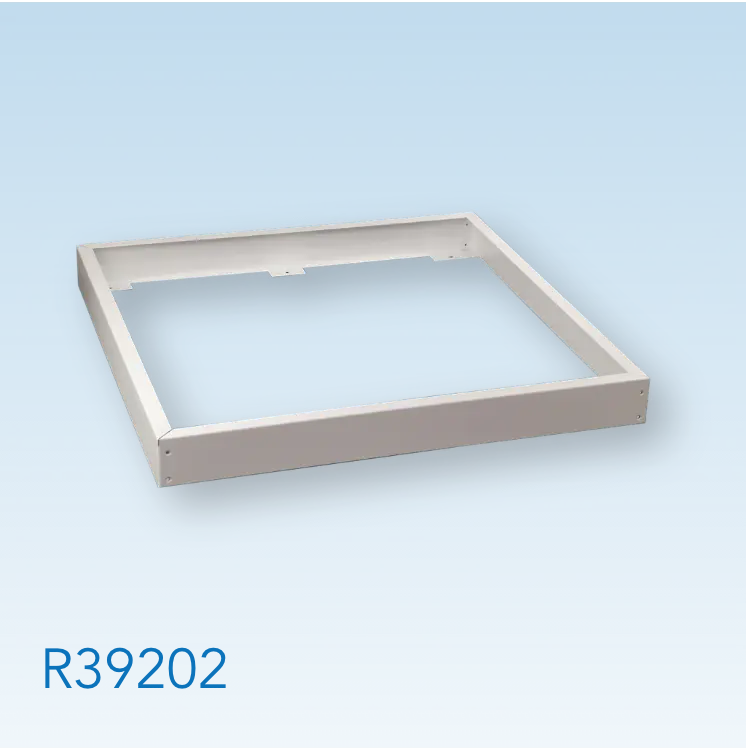

2’ x 2’ Surface Mounted Kits
2’ x 4’ Surface Mounted Kits

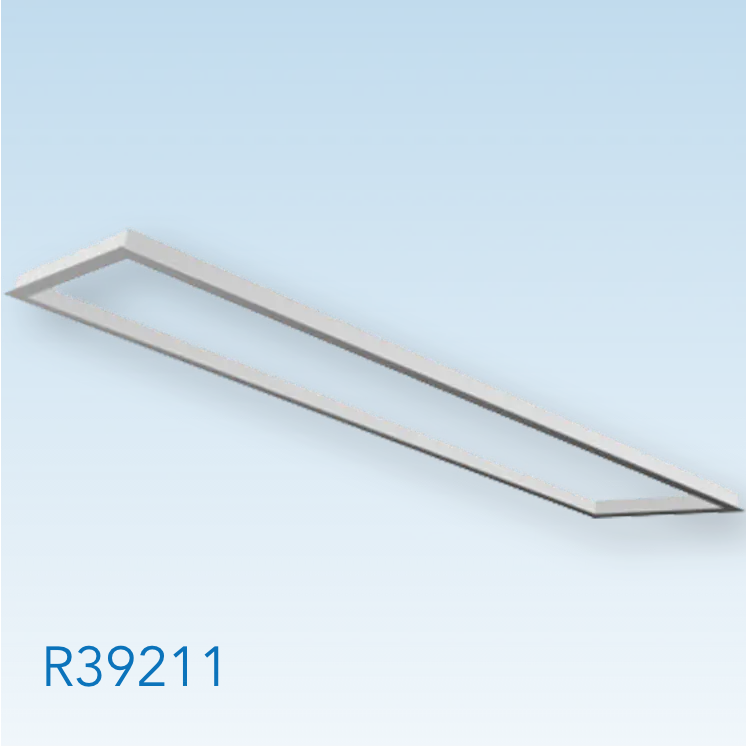

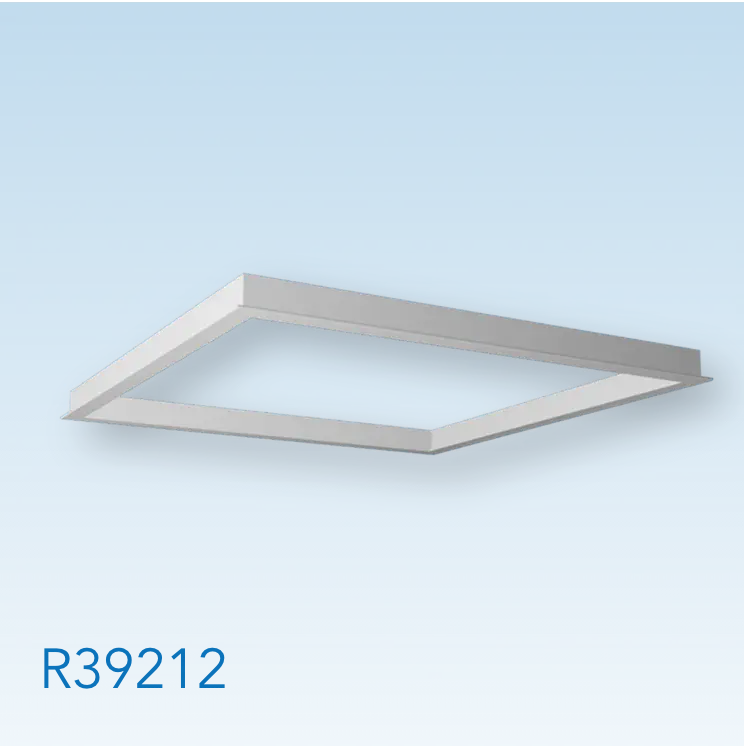

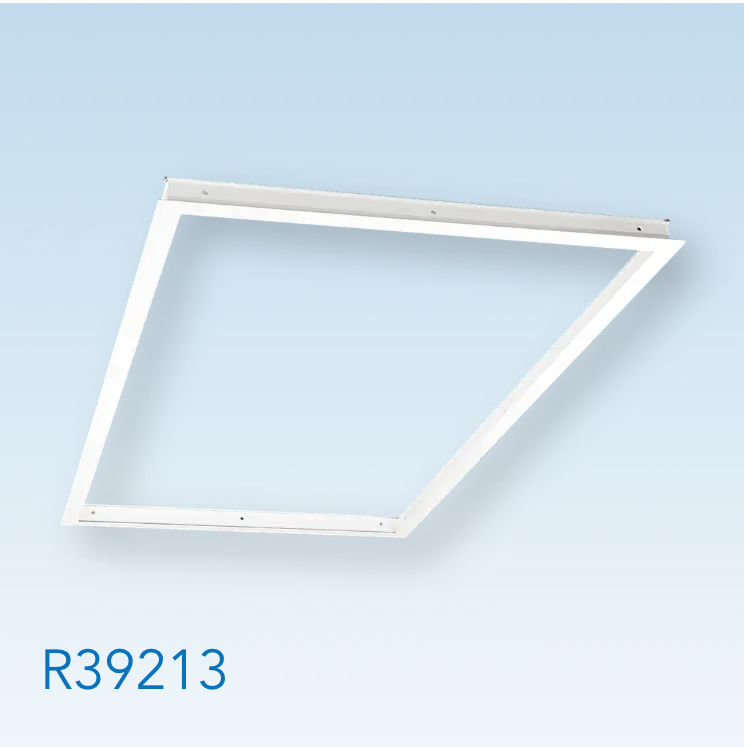

Recessed Flange Kit for 1’ x 4’ Fixtures
Recessed Flange Kit for 2’ x 2’ Fixtures
Recessed Flange Kit for 2’ x 4’ Fixtures

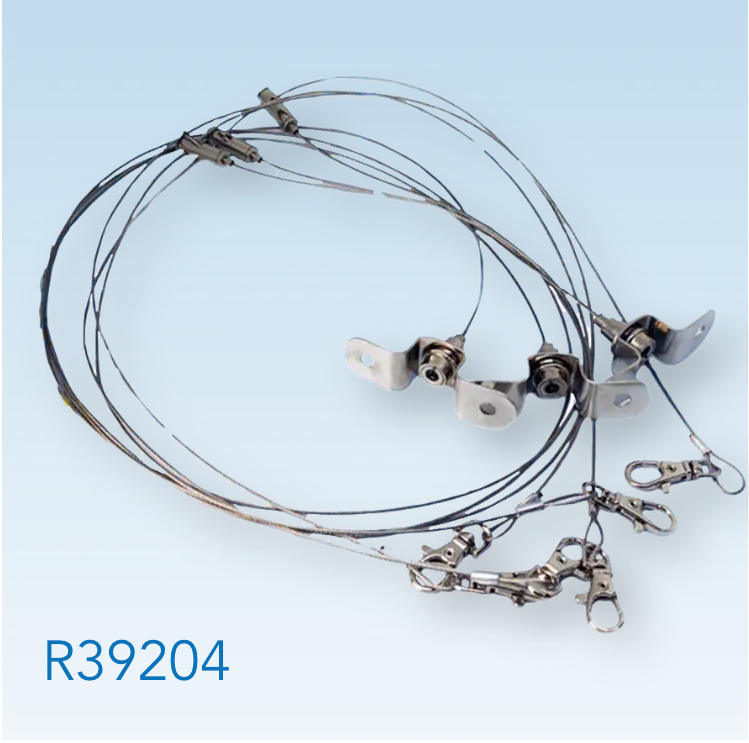

Aircraft Suspension Cable

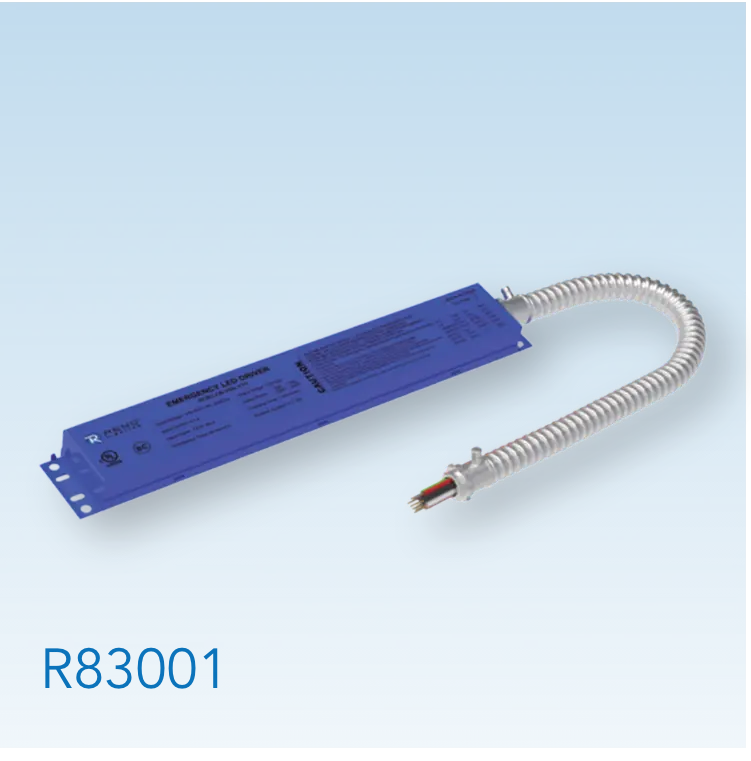

Emergency LED Driver (100-347V, 50/60Hz.15W)

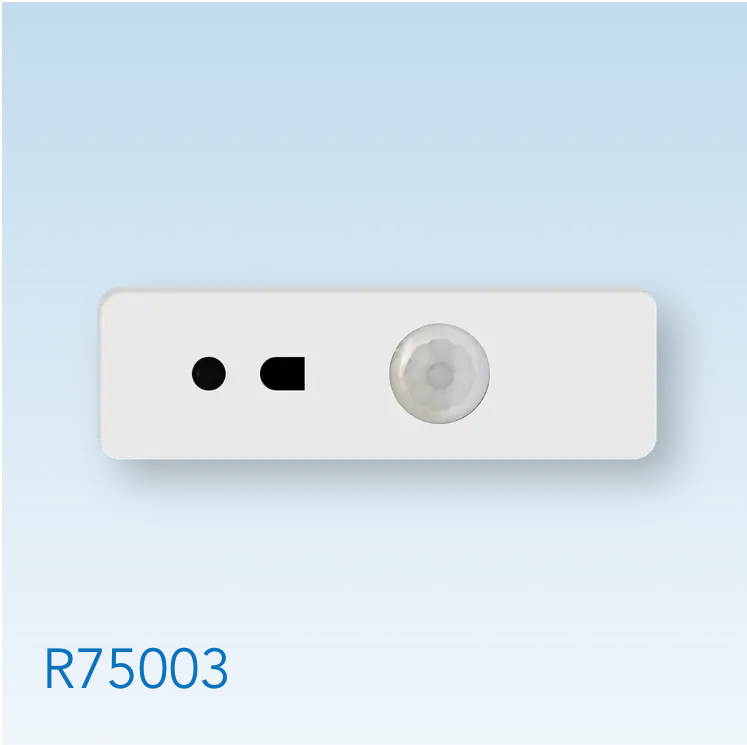

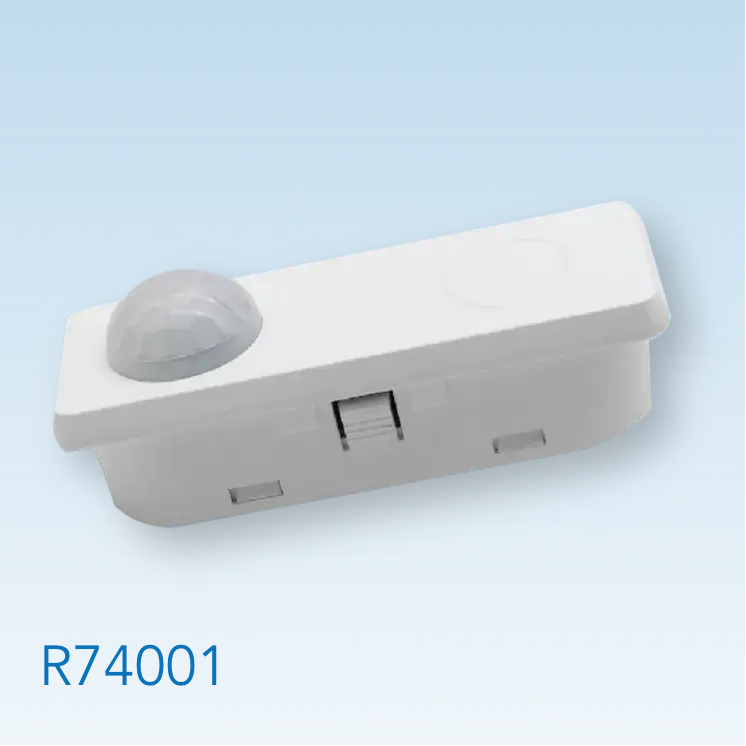

Dimmable 12V PIR Sensor
Dimmable 12V Bluetooth PIR Sensor

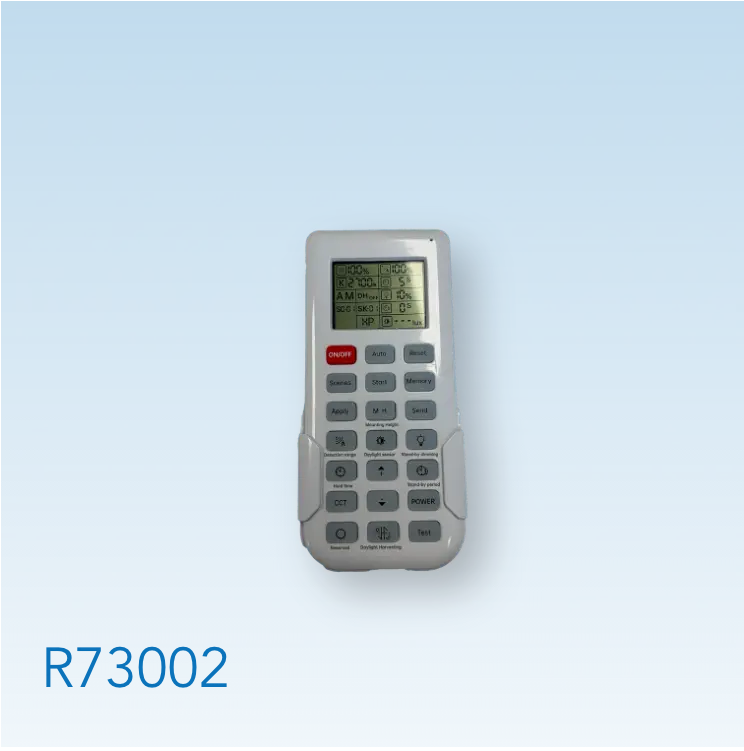

Remote Control for Standalone Sensors (With Screen)
Remote Control for Standalone sensors (Without Screen)
Need Help with Specifying our BACKLIT FLAT PANELS? We're here to help!
