Refined Simplicity

A narrow, sleek profile designed for clean integration, blending quietly into its surroundings

Length

48.4" (1,230 mm)

Height

7.6" (192 mm)

Width

1.4" (35.5 mm)

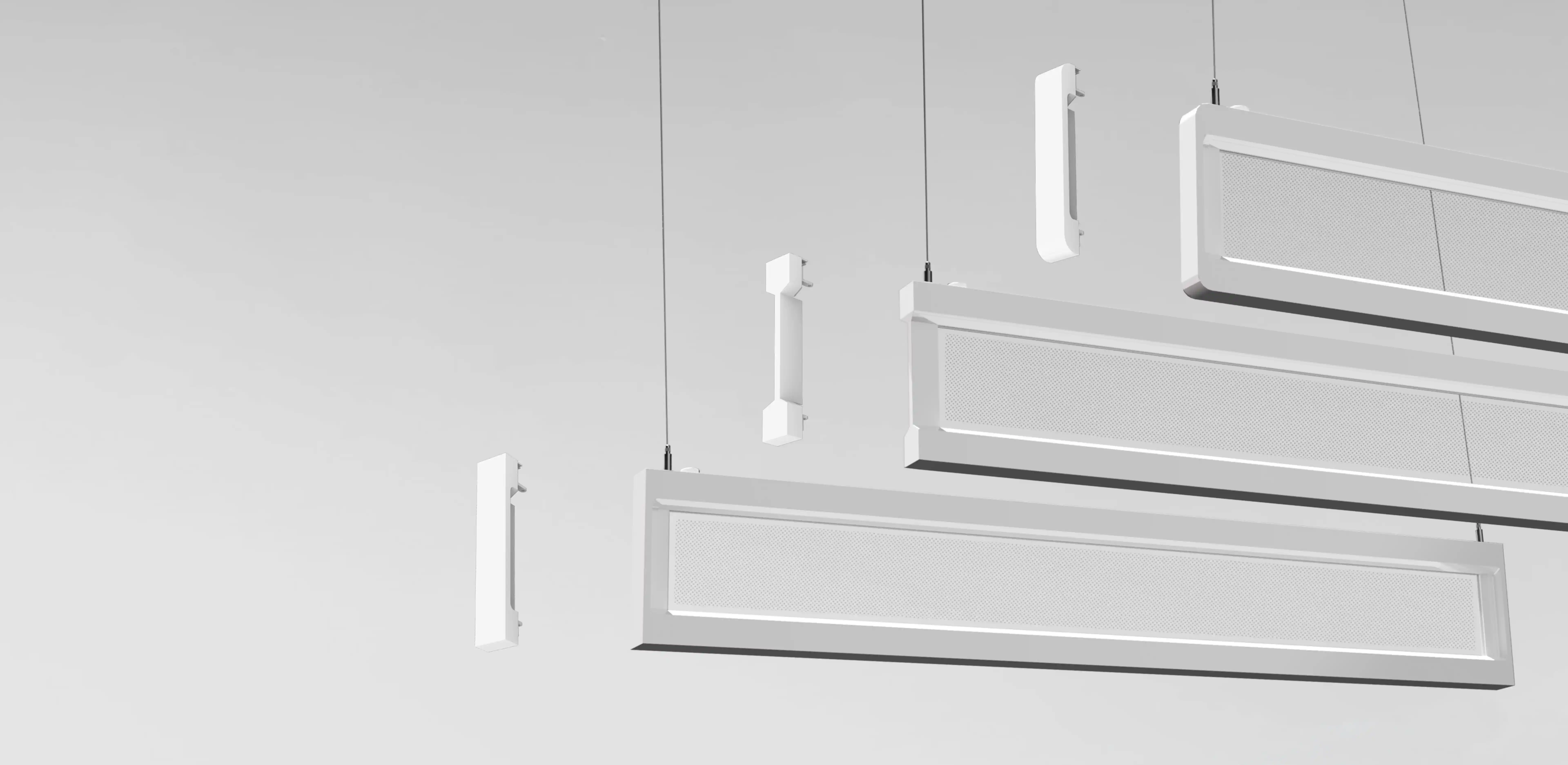

Designed To Adapt

End Cap offer design flexibility, allowing STRATOS
to adapt seamlessly to different spaces and design visions.

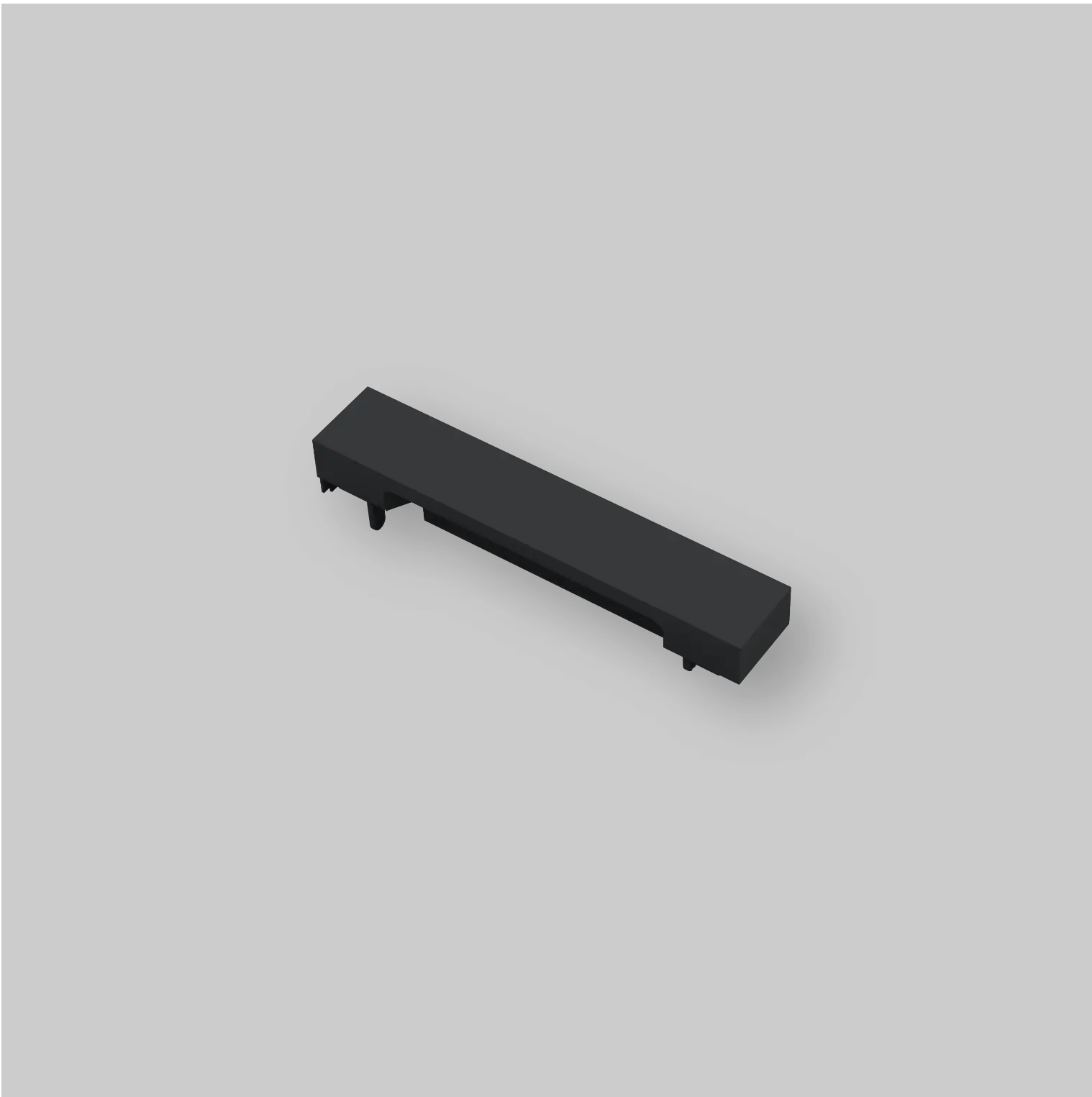

Straight

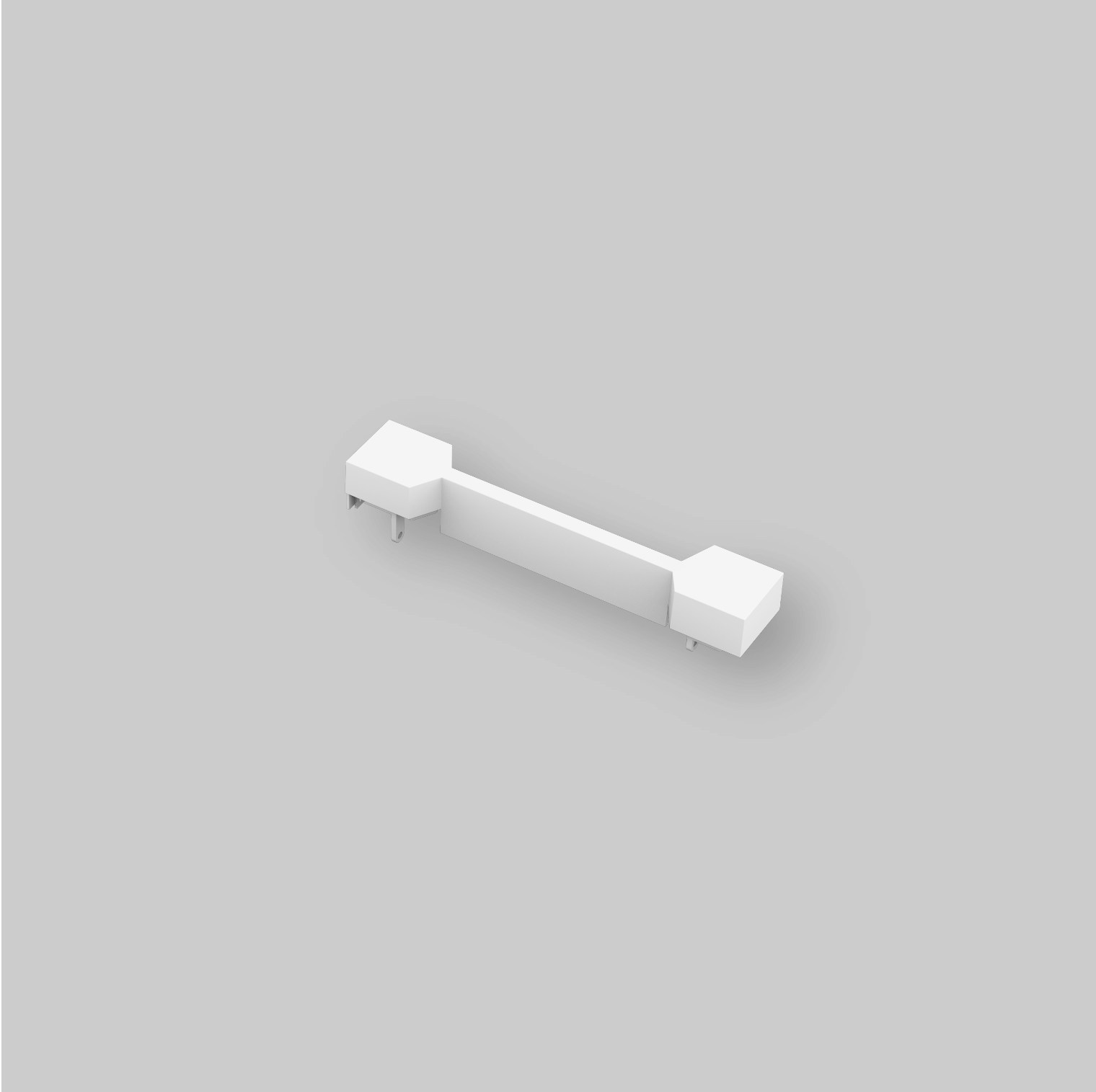

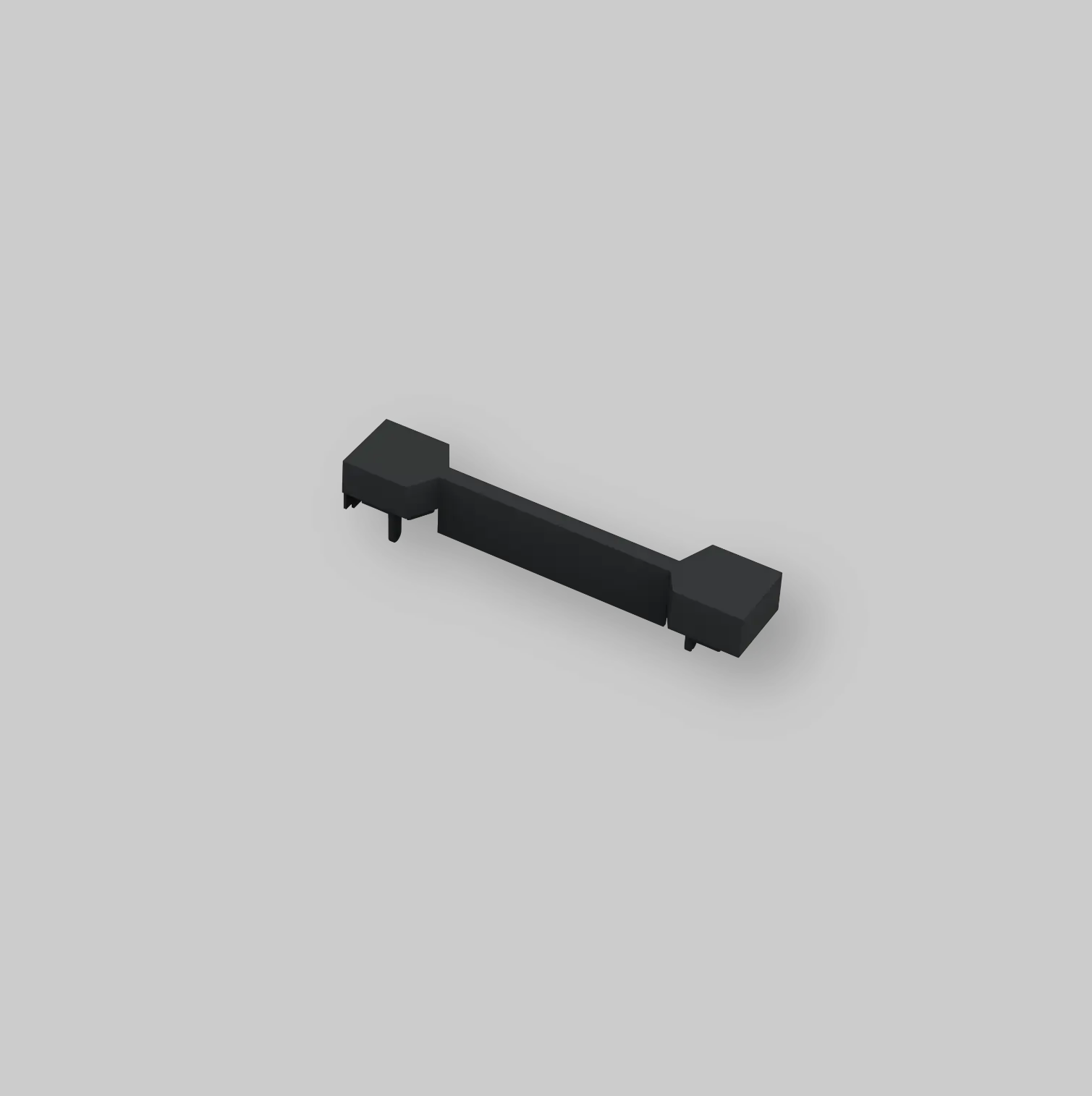

Standard

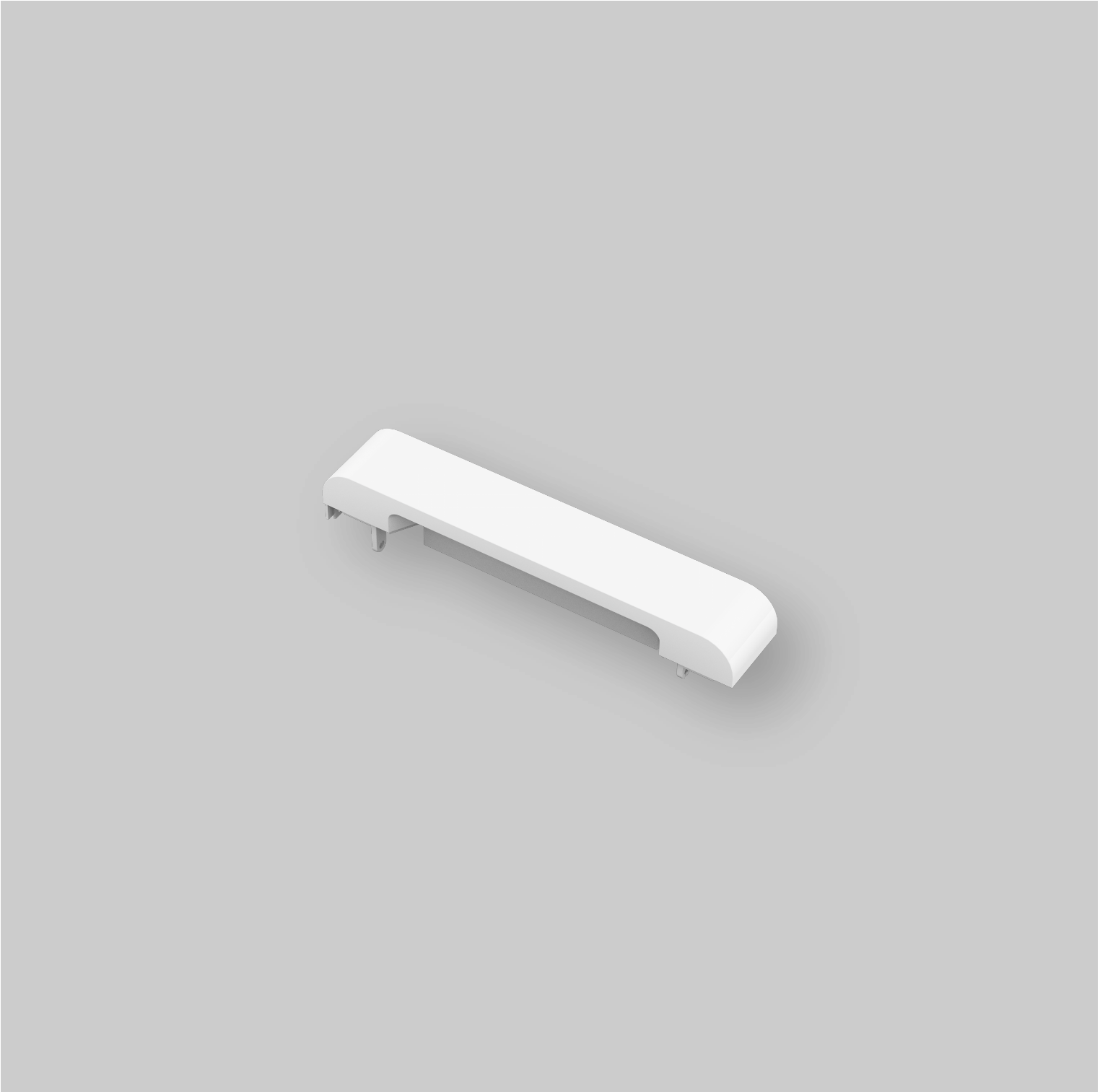

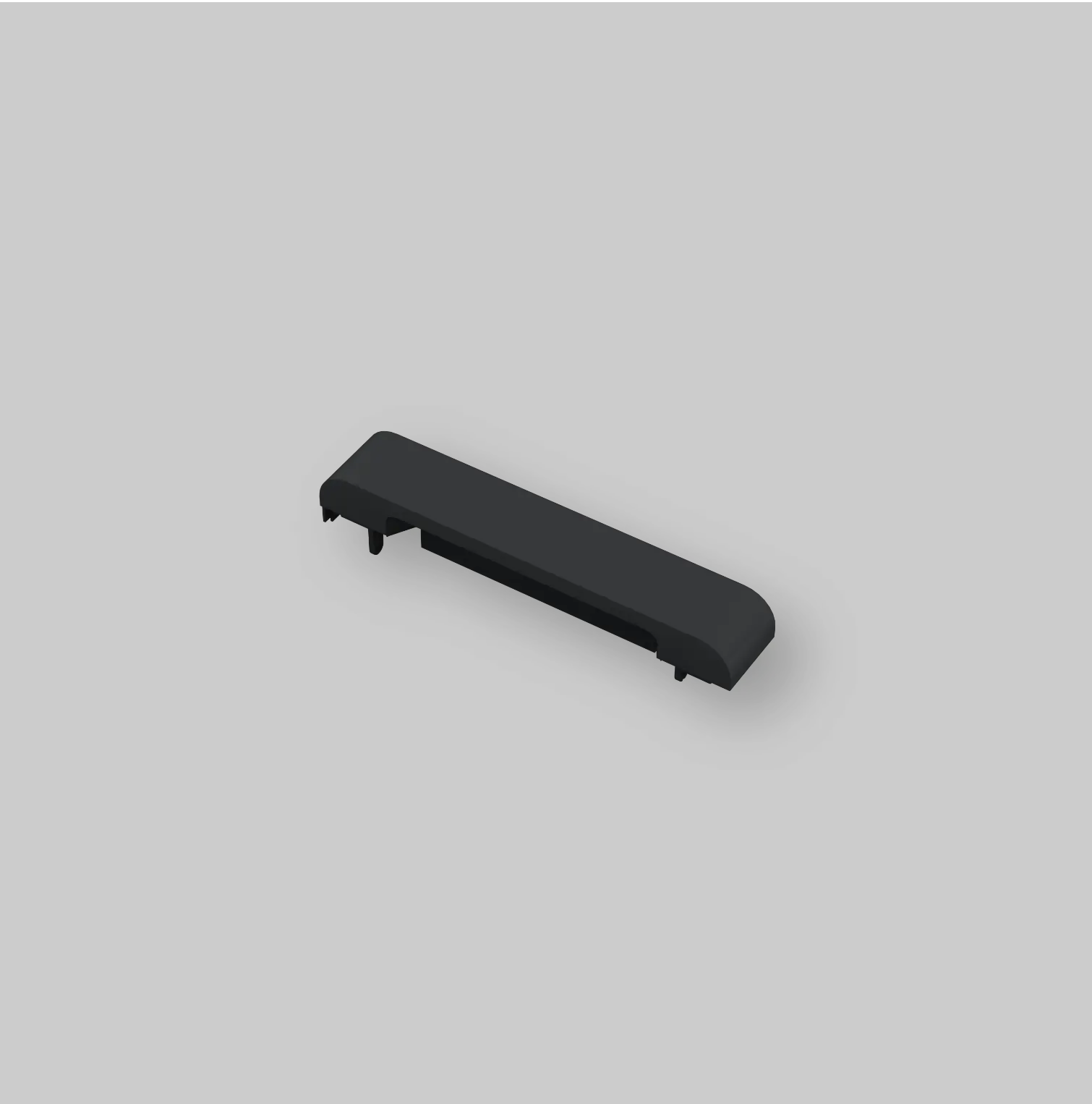

Curved

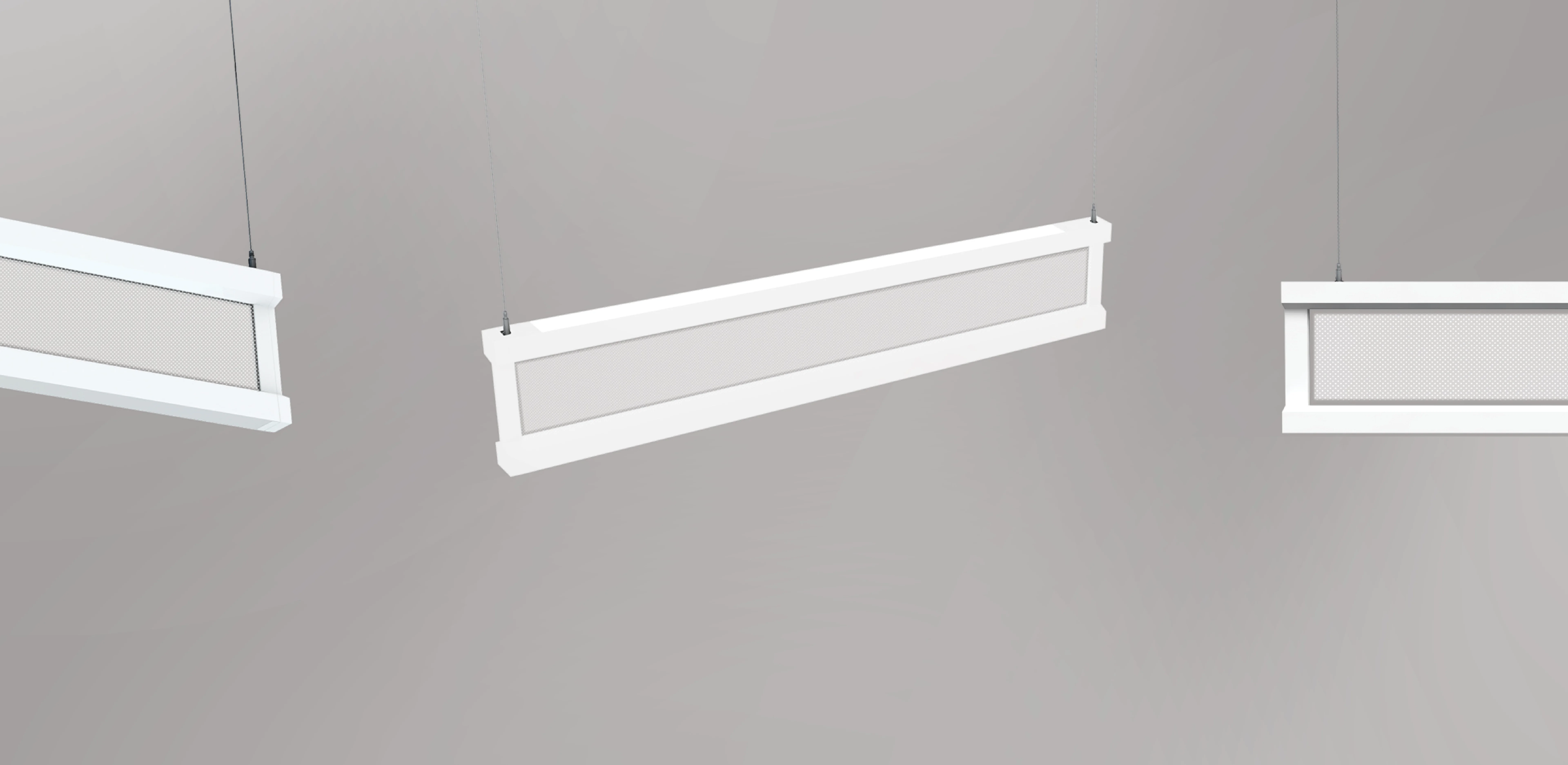

Indirect

Direct & Indirect

Direct

Light, Directed with Precision

Selectable Up, Down, or Up & Down light distributions deliver flexible, evenly balanced illumination. A clear polycarbonate light-guide plate ensures glare-free performance, while CRI 90 and a wide 120° beam angle provide accurate color and comfortable, ambient light.

Gentle Glow to the Sides

While delivering precise direct or indirect light distribution, STRATOS also emits
a gentle glow from both sides through its dot-matrix patterned central diffuser —
enriching the space without interfering with the precisely directed functional beams.

​

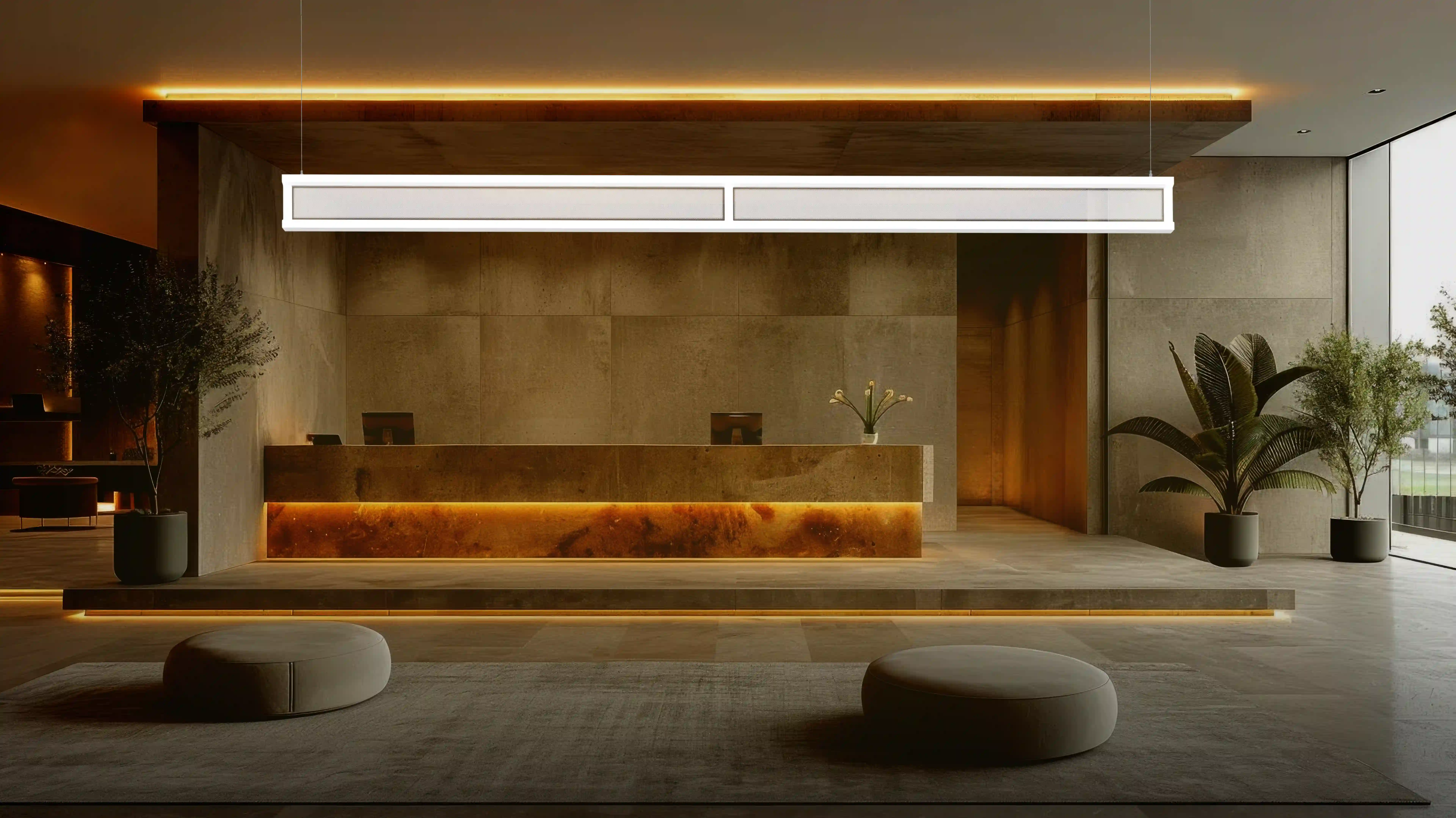

Light without Interruption

STRATOS connects effortlessly to form continuous runs, delivering clean lines of uninterrupted illumination with refined visual continuity.

Versatile Integration

A refined vertical form that blends naturally into any environment, delivering balanced
illumination with a clean, understated presence.

Change The Mood

Selectable CCT allows the light to transition from warm 3000K, through balanced 3500K, to clean, neutral 4000K​—shaping the atmosphere throughout the day.

3000K

3500K

4000K

Highlights

   IES Files

​

Voltage

Wattage

120-347V AC

40W

0-10V DC

> 90

Dimming

CRI

Suspension (optional row-mounting)

-20ºC to +45ºC (-4ºF to +104ºF)

Operating Temperature

Mounting

Efficacy

120 lm/W

Lumens

Up to 4,800 lm

Beam Angle

120º

Lifespan

L80@100,000 hrs

Technical Details

Product Specifications

   Commercial

   Residential

   Installation Manual

   Spec Sheets

   Retail Facilities

   Offices

   Sell Sheets

Resources

Resources

Available Finishes

Color Temperatures

White

3000K

4000K

Black

Certifications

3500K

Order #

Model

Wattage

Voltage

@ 3000K CCT

Finish

@ 4000K CCT

@ 5000K CCT

R33421
R33422

120-347V AC
120-347V AC

​

​

40W
40W

​

​

1. 4,489 lm (112 lm/W)
   4,489 lm (112 lm/W)

2. ​

​

​

1. 4,673 lm (116.8 lm/W)
   4,673 lm (116.8 lm/W)

2. ​

​

​

1. 4,755 lm (118.9 lm/W)
   4,755 lm (118.9 lm/W)

2. ​

​

​

White
Black

​

​

RENO-ULVP-DV-40W-MCCT-WH
RENO-ULVP-DV-40W-MCCT-BK

​

​
